Tree Spades



    All spades are designed with a very short frame reducing the need for stabilizers and counterweight by 15 to 20 hp in tractor or skid steer size. Sizing can be difficult to determine because any given spade will handle a much larger tree then what will survive.
Soil conditions and the amount of water available for the tree in the first two years are just as important as the spade size.
Sizes given on brochures are good if the customer will give some water, if special care is given you can increases the tree size by 1/3, and if no care is planned you should decrease the size by 1/3




Skid Steer ~ Tree Scoop

X4B

Size: 28” diameter

Tree size: 2”

Unit weight: 255 lb



X4B

Flat tip to compact root ball

X4S

Size: 28” diameter

Tree size: 1.5”

Unit weight: 255 lb



Included:

Skid-steer quick-attach as part of the frame, so the

scoop will be ready for a skid-steer anytime.

X4S

Sharp tip for easy digging

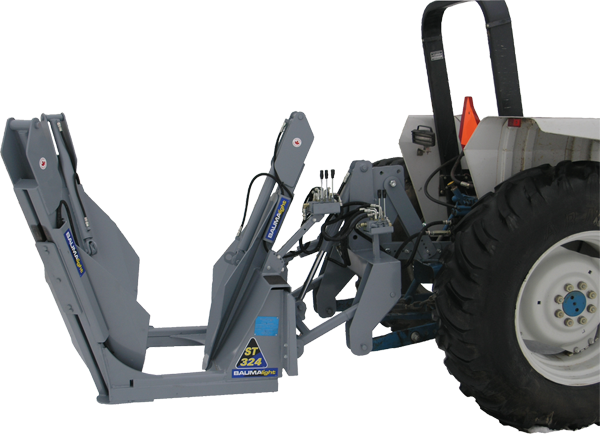

ST324





Size: 24” diameter

Tree size: 2”

Unit weight: 990 lb

Weight with tree: 1,160 lb



3 Point 6M

Included:

Skid-steer quick-attach as part of the frame.
Universal attachments (tractor loader or tractor 3-point hitch) can be ordered to adapt onto frame before or after spade has been used, so if removed, spade will be ready for a skid-steer anytime.

The 10M Loader Mount is functional for all of our tree spade models

Loader Mount


SS330





Size: 30” diameter

Tree size: 3”

Unit weight: 1,450 lb

Weight with tree: 2,050 lb



Out side blade swings open to except evergreen trees
Excellent central view for operator

3 Point 7M

Included:

Skid-steer quick-attach as part of the frame.
Universal attachments (tractor loader or tractor 3-point hitch) can be ordered to adapt onto frame before or after spade has been used, so if removed, spade will be ready for a skid-steer anytime.

The 10M Loader Mount is functional for all of our tree spade models

Loader Mount


ST440

Comparison Table


Size: 40” diameter

Tree size: 4”

Unit weight: 1,850 lb

Weight with tree: 2,450 lb



3 Point 7M

Included:

Skid-steer quick-attach as part of the frame.
Universal attachments (tractor loader or tractor 3-point hitch) can be ordered to adapt onto frame before or after spade has been used, so if removed, spade will be ready for a skid-steer anytime.

The 10M Loader Mount is functional for all of our tree spade models

Loader Mount


DR440 Comparison Table



Size: 40” diameter

Tree size: 4”

Unit weight: 2,540 lb

Weight with tree: 3,140 lb



See More Pictures!

3 Point 9M
  • Electric controls
  • Out side blades swing open for evergreen trees
  • Nylon slides that can easily be changed
  • Excellent central view for operator
  • Blades are bolt on

The 10M Loader Mount is functional for all of our tree spade models

Loader Mount

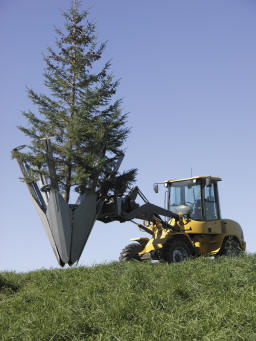

ST650 Spade

Size: 50” diameter

Tree size: 5”

Unit weight: 3,025 lb

Weight with tree: 5,150 lb

Required lifting capacity; 8,583 lb

3 Point 9M


Tree Auger
tree auger

  • Tree auger attachι to the standard drive models RC442 & RC556.

  • If you have bought some basketed trees a tree auger is an excellent tool to plant them.
  • You get a nice tapered hole with nice fine dirt for backfilling, the fine lose dirt will seal off the circumference well giving the tree much greater chance of survival
  • You can spread the remainder around and there is no need to hall any left-over dirt away
More Information

Comparison Table
FEATURE X4S X4B ST324 SS330 ST440 ST650 DR440

Tree Size (Evergreen)

1.5"

2"

2"

3"

4"

5"

4"

Tree Size (Hardwood)

1"

1.5"

1.5"

2.5"

3"

4"

3"

Root Ball Diameter

28"

28"

24"

30"

40"

50

40"

Root Ball Depth

20"

20"

23"

29"

30"

43"

30"

Blade Angle

90

90

25

25

25

25

25

No. of Blades

1

1

3

3

4

6

4

Blade Thickness

1/4" High Alloy

1/4" High Alloy

1/4" High Alloy

3/8" Mild Steel

1/4" High Alloy

1/4" High Alloy

1/4" High Alloy

Slides

~

~

Steel

Steel

Steel

Steel

Nylon

Blade Truncation

Sharp

Full

Semi

Semi

Full

Semi

Full

Outside Towers Swing Open (Swing Hinge Frame)

~

~

No

Yes

Yes

Yes

Yes

Operator Controls

~

~

Hydraulic

Hydraulic

Hydraulic

Hydraulic

Electric

Hydraulic Flow Requirement (GPM)

~

~

5-25

5-25

5-25

5-25

5-25

Hydraulic PSI

~

~

2,500

2,500

2,500

2,500

2,500

Hydraulic Remotes Required

0

0

1

1

1

1

1

Skid Steer Attachment

Universal Skid Steer Plate On All Models

3-Point Hitch Adapter - Availability / Model

N/A

N/A

Yes / 6M

Yes / 7M

Yes / 7M

Yes / 9M

Yes / 9M

Loader Adapter - Availability / Model

Yes / 10M

Yes / 10M

Yes / 10M

Yes / 10M

Yes / 10M

Yes / 15M

Yes / 15M

Rec. HP for Front Loaders Mounted

40

60

50

65

120

200

140

Rec. HP for Skid Steer Mounted

40

60

45

60

80

110

90

Rec. HP for 3-PTH (no loader for counter weight)

~

~

40

55

90

120

110

Rec. HP for 3-PTH (with loader)

~

~

30

45

65

90

70

Unit Shipping Weight (lbs.)

225

225

990

1,450

1,850

3,025

2,540

Unit Weight with Root Ball

725

725

1,290

1,950

3,050

5,150

3,740

Unit Shipping Dimensions (L x W)

24"x44"

24"x44"

4’x6’

4’x7’

5’x7’

8’x8’

5’x7’

Width- Bottom (Top)

28" (44")

28" (44")

48" (75")

48" (90")

66" (84")

50" (96")

48" (84")

Length - Bottom (Top)

43" (20")

40" (20")

48" (68")

50" (81")

58" (84")

86" (112")

58" (84")
