Tractor Driven Generators
-
Convenient
reset circuit breakers
prevent short circuit
damage
-
Brushless
style eliminates the
need for tedious repairs
-
Copper
windings
-
Shielded
power shaft provides
maximum safety for operator
-
Mounting
base for trailer or
permanent installation
-
Drip
proof design
-

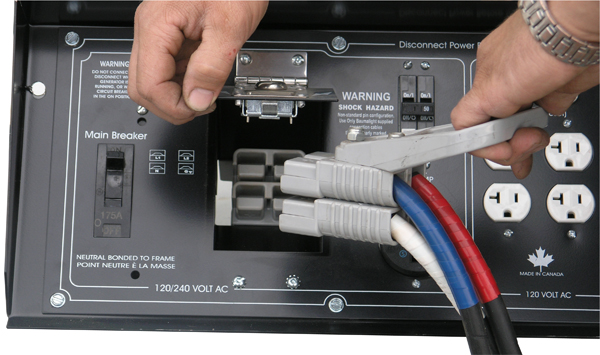

Full
load connector with
lockable cover
-
Voltage
meter (visible from
tractor seat)
-
20 amp
duplex receptacle, 50-amp
welder receptacle
-
Limited
Warranty (less of) 2
Year/2000 hour
-
Made
in Canada
|
QC Series
|
|
|
|
-
Low speed
(1,800 rpm)
-
Speed indicating
lights highly
visible
from tractor
seat
-
Display
Master 1
for QC
-
Automatic
voltage
regulation,
this prevents
over voltage
and keeps
240 volt
down to
55 Hz
-
High momentary
surge, approx.
3 times
the rated
continuous
capacity
for superior
motor stating
ability
-
Designed
for 24 hour/7
days a week
operation
-
Plus
or minis
1% voltage
regulation
|
|
|
 |
|
|
|
Model Number |
Connection |
Watts |
Momentary |
Required HP. |
Required HP. |
120v 20amp duplex |
Welder Recept |
Main
Volts |
CB. Amps |
Phase |
Shipping |
|
Surge Watts |
At 50% Load |
At Full Load |
|
Voltage |
Weight lbs |
|
QC12 |
Dedicated |
12,000 |
25,000 |
9 |
21 |
2 |
240 |
120/240 |
50 |
1 |
592 |
|
QC19 |
Dedicated |
19,000 |
35,000 |
16 |
34 |
2 |
240 |
120/240 |
90 |
1 |
678 |
|
QC30 |
Dedicated |
30,000 |
85,000 |
20 |
49 |
2 |
240 |
120/240 |
125 |
1 |
640 |
|
QC45 |
Dedicated |
45,000 |
120,000 |
31 |
75 |
2 |
240 |
120/240 |
175 |
1 |
945 |
|
QC55 |
Dedicated |
55,000 |
150,000 |
42 |
89 |
2 |
240 |
120/240 |
225 |
1 |
1037 |
|
QC65 |
Dedicated |
65,000 |
180,000 |
48 |
102 |
2 |
240 |
120/240 |
250 |
1 |
1156 |
|
QC80 |
Dedicated |
80,000 |
225,000 |
55 |
122 |
2 |
240 |
120/240 |
320 |
1 |
1335 |
|
QC100 |
Dedicated |
100,000 |
300,000 |
71 |
153 |
2 |
240 |
120/240 |
400 |
1 |
1485 |
|
|
|
QC30-2 |
Parallel Low WYE |
30,000 |
85,000 |
20 |
49 |
2 |
208 |
120/208 |
100 |
3 |
779 |
|
QC45-2 |
Parallel Low WYE |
45,000 |
120,000 |
31 |
75 |
2 |
208 |
120/208 |
150 |
3 |
995 |
|
QC68-2 |
Parallel Low WYE |
68,000 |
190,000 |
50 |
105 |
2 |
208 |
120/208 |
250 |
3 |
1160 |
|
QC105-2 |
Parallel
Low WYE |
105,000 |
315,000 |
72 |
155 |
2 |
208 |
120/208 |
380 |
3 |
1474 |
|
|
|
QC30-3 |
Series High Delta |
30,000 |
85,000 |
20 |
49 |
2 |
240 |
120/240 |
90 |
3 |
779 |
|
QC45-3 |
Series High Delta |
45,000 |
120,000 |
31 |
75 |
2 |
240 |
120/240 |
150 |
3 |
995 |
|
QC68-3 |
Series High Delta |
68,000 |
190,000 |
50 |
105 |
2 |
240 |
120/240 |
225 |
3 |
1160 |
|
QC105-3 |
Series High Delta |
105,000 |
315,000 |
72 |
155 |
2 |
240 |
120/240 |
320 |
3 |
1474 |
|
|
QC30-4 |
Series High WYE |
33,000 |
85,000 |
20 |
49 |
0 |
n/a |
277/480 |
50 |
3 |
779 |
|
QC45-4 |
Series High WYE |
50,000 |
120,000 |
31 |
75 |
0 |
n/a |
277/480 |
70 |
3 |
995 |
|
QC68-4 |
Series High WYE |
76,000 |
190,000 |
50 |
105 |
0 |
n/a |
277/480 |
100 |
3 |
1160 |
|
QC105-4 |
Series High WYE |
113,000 |
315,000 |
72 |
155 |
0 |
n/a |
277/480 |
150 |
3 |
1474 |
|
|
QC50-6 |
Dedicated |
50,000 |
130,000 |
35 |
80 |
0 |
n/a |
347/600 |
60 |
3 |
1010 |
|
QC75-6 |
Dedicated |
75,000 |
200,000 |
52 |
110 |
0 |
n/a |
347/600 |
90 |
3 |
1175 |
|
QC100-6 |
Dedicated |
100,000 |
300,000 |
71 |
153 |
0 |
n/a |
347/600 |
120 |
3 |
1485 |
|
|
|
| |
|
TX Series
|
|
|
|
-
3,600 rpm
and 2 times
surge protection
-
Self regulation
-
Voltage
meter
-
Plus
or minis
6% voltage
regulation
|
|

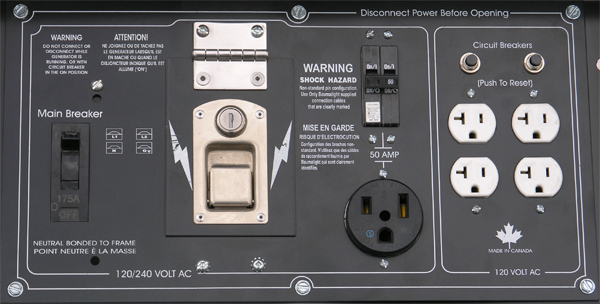

Used
for
the
TX
12000
/ TX
7000
|

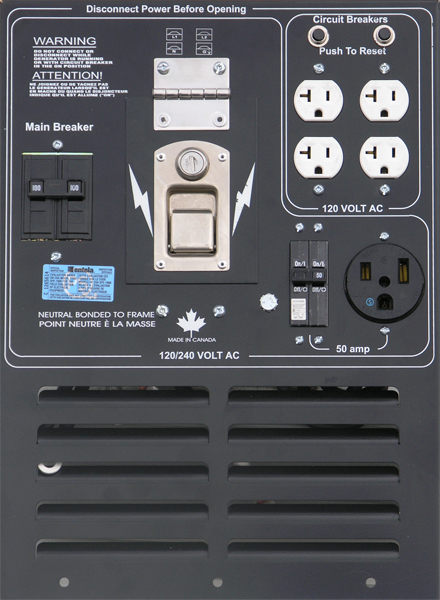

Used
for
the
TX
18000
TX
25000
TX
31000
|
|
|
Connection |
|
|
|
|
120v 20amp Duplex |
Welder Recept Voltage |
|
|
|
|
|
TX 7000
|
Dedicated |
7,000
|
14,000
|
5hp
|
11hp
|
2 |
240 |
120/240
|
30
|
1
|
300
|
|
TX 12000
|
Dedicated |
12,000
|
24,000
|
10hp
|
21hp
|
2 |
240 |
120/240
|
50
|
1
|
348
|
|
TX 18000
|
Dedicated |
18,500
|
37,000
|
15hp
|
34hp
|
2 |
240 |
120/240
|
80
|
1
|
430
|
|
TX 25000
|
Dedicated |
25,000
|
50,000
|
19hp
|
42hp
|
2 |
240 |
120/240
|
100
|
1
|
490
|
|
TX 31000
|
Dedicated |
31,000
|
62,000
|
22hp
|
50hp
|
2 |
240 |
120/240
|
125
|
1
|
520
|
|
|
