Brush Mulcher

Turn your Skid Steer or Tractor into a powerful brush mulching machine!

MF 360

Efficient cutting on low flow hydraulics (12-24 GPM).
Unique Flail blades to protect an already heavy duty gearbox and maximize cutting performance.
Reversible cutters so you can flip the blade once one side is dull.
Control all functions from skid steer seat.
Large opening on front and back protected with a chain curtain to contain flying debris and allowing standing brush to enter and letting mulched material exit.
Ships with universal skid steer plate and flat-face hydraulic quick couplers.
2.5" cutting height ideal for close cutting.
Fine mulching resulting from the unique blade design.
Heavy duty frame design to handle rough terrain.
Cutting width: 60"
Overall Width: 70"
Overall Length: 82"
Blade RPM: 800
Unit Weight: 1240 lbs

MF 548
	Powerful mulching on low flow hydraulics 104 Carbide tipped teeth for longer tooth life, smoother operation and much finer mulch. Teeth can be field installed. Control all functions from skid steer seat. Puller/Pusher bar to drag brush out of tight corners and push trees away from mulcher as they are cut. Ships with universal skid steer plate and flat-face hydraulic quick couplers. Rugged timer belt for long durability. Unit weight 1290 lb Cutting width 48" Over all width 62" 24 gpm Maximum Flow Rotor RPM-1200
	Motor Options

MF 760
	Powerful mulching on high flow hydraulics 126 Carbide tipped teeth for longer tooth life, smoother operation and much finer mulch. Teeth can be field installed. Control all functions from skid steer seat. Puller/Pusher bar to drag brush out of tight corners and push trees away from mulcher as they are cut. Ships with universal skid steer plate and flat-face hydraulic quick couplers. Rugged timer belt for long durability. Unit weight 1800 lbs Cutting width 60" Over all width 75" 42 gpm Maximum Flow Rotor RPM-1750
	Taking Down A Large Tree Motor Options

MF860

Use your tractor to mulch large areas of brush and felted tops with out lifting a twig. direct drive to give you ultimate cutting power!
126 carbide tipped teeth for longer tooth life, smoother operation and finer mulch.
Direct drive to give you ultimate cutting power!
Teeth can be field installed.
Pusher bar to push trees away from mulcher as they are cut
Rugged timer belt for long durability.
Unit weight 1550 lb
Cutting width 60"
Over all width 75"
Overall Height 58"

Drive System on Tractor
	45 hp	60 hp	65 hp	70 hp
Regular Drive	3"	4"	5"	6"
Creeper Gear	5"	6"	7"	8"
Automatic Transmission	8"	10"	12"	14"
Double All Sizes For Intermittent Cutting

Mulcher Teeth

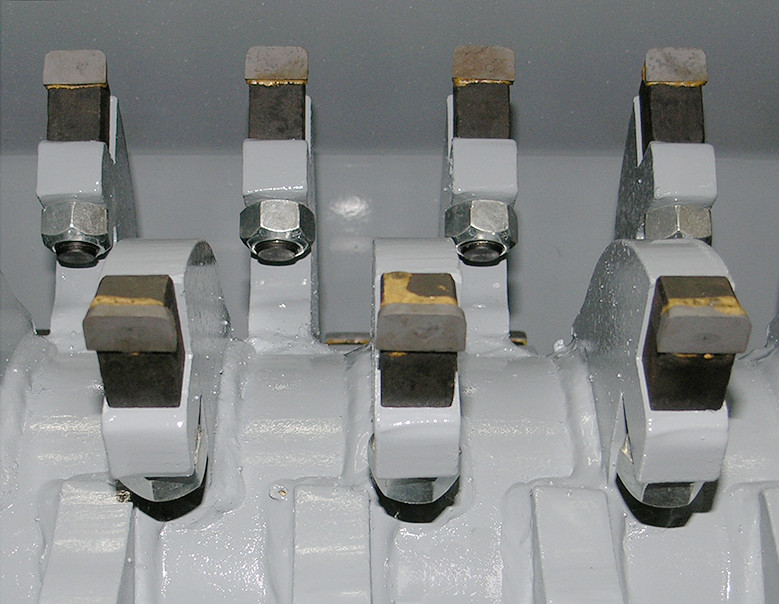

On the picture to the left you can see that these mulcher teeth are staggered in a spiral
Rotating teeth are populated in a three contact pattern every half round allowing a smooth transition of power, teeth do not all hit in banks as it may appear.
This staggered pattern along with knife tipped teeth finally allows low-flow mulching to become a realized reality.
Teeth bit deep with a significant cutting angle design
Ultra tooth population reduces �impact per tooth� on stones permitting little or no replacement of teeth.
Replacement of teeth is done in ones or two�s, �never� as a set.
Low maintenance cost by design, replace only the tips, �not� big blocks of steel.

Comparison Table
	MF360	MF548	MF760	MF860
Motor option available	A450,B550 &C350	A450&B550	C350
Path width	70	62	75	75
Rotor width	60	48	60	60
Cutting height from ground	2.5"	0 to 1.5"	0 to 1.5"	0 to -1.5"
Rotor rpm	800	1200	1750	1800
Number of cutters	2	104	126	126
slashes per second	2600	4160	7350	7560
Hitch type	skid steer	skid steer	skid steer	3-point
Hitch size	universal	universal	universal	CAT II
Max psi	3000	3000	3000	3000
Max flow (GPM)	24	24	42	20
Recommended flow (GPM)	22	22	40	10
Min flow (GPM)	10	12	20	2
Hose size	3/4"	3/4"	1"	1/4"
Max HP	check flow and psi	check flow and psi	check flow and psi	70
Min HP	40	35	60	45
System protection	built in relieve	built in relieve	built in relieve	slip clutch
Needs case drain	check motor option		yes	no
Shipping size (lenth, width, hight)	36x80x90	64x36x40	80x48x65	80x48x65
Unit weight (lb)	1240	1290	1800	2100

Motor Option	A450	B550	C350
Max psi	3000	3000	3000
Max flow (GPM)	20*	24*	40*
Recommended flow (GPM)	12-20	12-24	22-40
Min flow (GPM)	10	12	20
Hose size	3/4"	3/4"	1"
Must have case drain	no	yes	yes
* Motor will be destroyed if this value is exceeded

A450 MOTOR
HYDRAULICS	OPERATION	12 GPM	15 GPM	18 GPM	20 GPM	21 GPM
2500 PSI	Steady forward	0.75"	1"	1.25"	1.5"	N/A*
3000 PSI	Steady forward	1"	1.25"	1.5"	2"	N/A*
Double tree size for "stop & crawl" cutting.
B550 MOTOR
HYDRAULICS	OPERATION	12 GPM	20 GPM	22 GPM	24 GPM	25 GPM
2500 PSI	Steady forward	0.75"	1.5"	2"	2.25"	N/A*
3000 PSI	Steady forward	1"	2"	2.25"	2.5"	N/A*
Double tree size for "stop & crawl" cutting.
C350 MOTOR
HYDRAULICS	OPERATION	22 GPM	24 GPM	30 GPM	40 GPM	41 GPM
2500 PSI	steady forward	2"	2.25"	3"	3.5"	N/A*
3000 PSI	steady forward	2.25"	2.5"	4"	4.5"	N/A*
Double tree size for "stop & crawl" cutting.
MF860 3-PTH PTO DRIVE
GEAR SELECTION	OPERATION	45 HP	50 HP	60 HP	70 HP	71 HP
Low Gear	steady reverse	1"	1.5"	2"	3"	N/A*
	stop and go	2"	3"	4"	5"	N/A*
Creeper	steady reverse	2"	3"	4"	5"	N/A*
	stop and go	3"	4"	5"	6"	N/A*
Hydrostatic	steady reverse	4"	5"	6"	8"	N/A*
